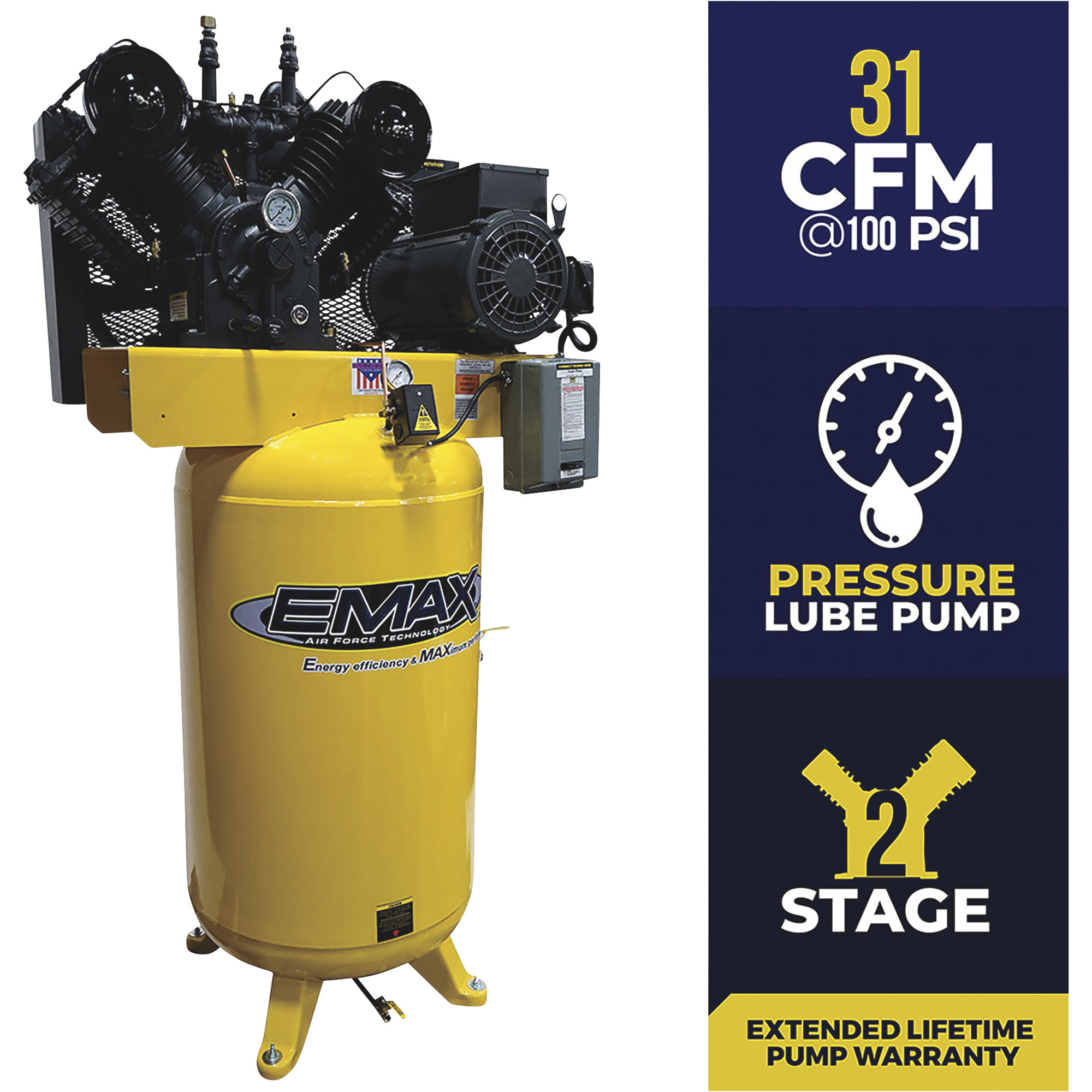

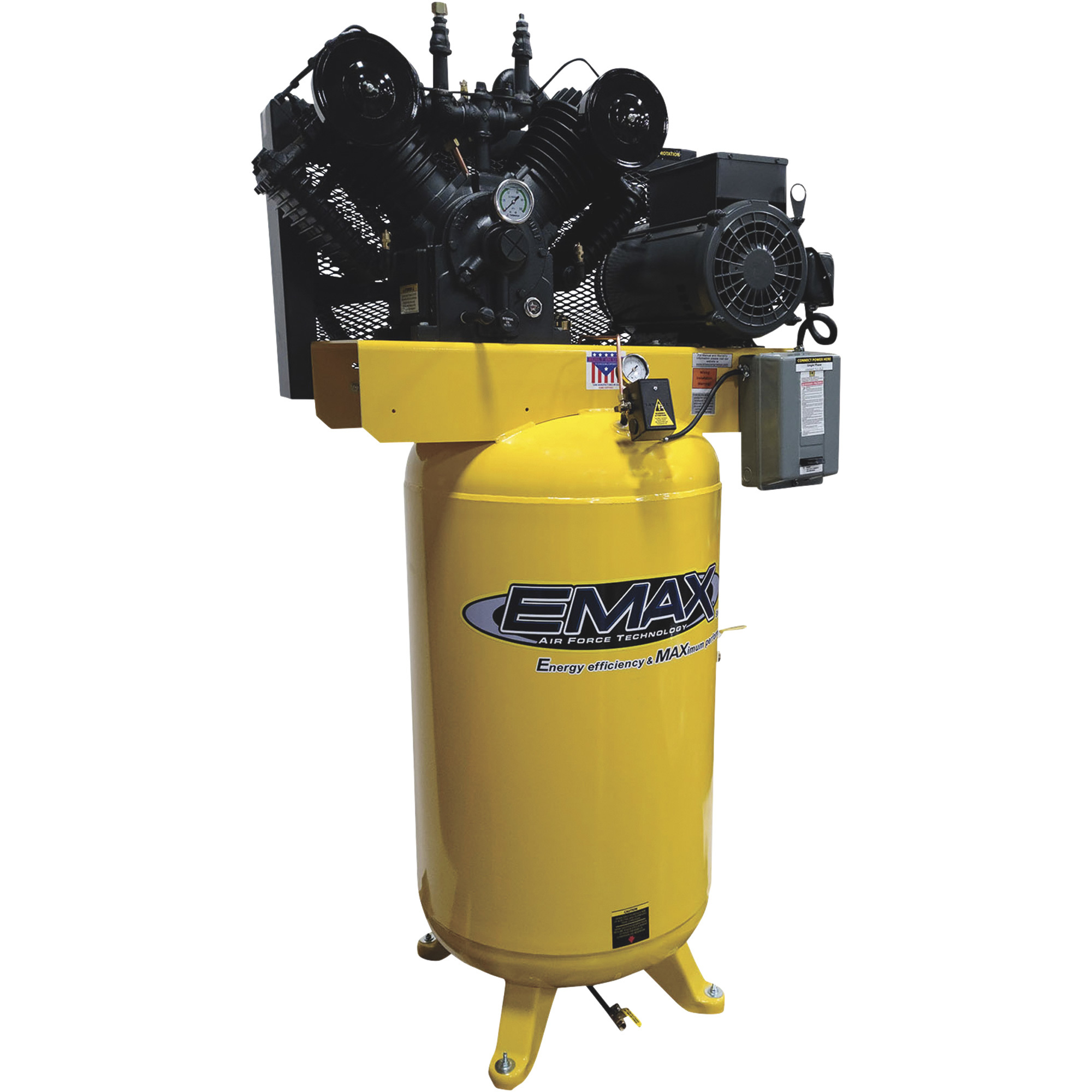

EMAX Industrial 10 HP, 2-Stage, 80-Gallon Vertical Air Compressor — 230 Volt, 1-Phase, Model# EI10V080V1
$2,675.00
Add to cart
Buy Now
Product Description
This EMAX Industrial 10 HP, 2-Stage, 80-Gallon Vertical Air Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. The 2-stage cast iron pump features Timkin-style stainless steel roller bearings on the front and rear of the crankshaft to ensure smooth, efficient operation with minimum drag. 100% brass ASME safety valves are preset and sealed for correct settings. Taper-lock and 2-groove, B-style belts ensure long belt life and low vibration. The 10 HP ODP motor features 1750 RPM and 60 Amp run for cool operation and easy startup.
What’s Included
- (1) Air compressor
Product ManualKey Specs
| Item# | 61125 |
| Brand | Emax |
| Manufacturer’s Warranty | 5 year limited warranty |
| Ship Weight | 880.0 lbs |
| Horsepower | 10 |
| Air Tank Size | 80 |
| Volts | 230 |
| Stage | 2 |
| CFM at 90 PSI | 36 |
| Max. PSI | 175 |
| CFM at 40 PSI | 38 |
| CFM at Max. PSI | 30 |
| Working Pressure | 145–175 |
| Air Outlets (qty.) | 1 |
| Air Outlet Size | 3/4 |
| Motor RPM | 1,750 |
| Motor Phase | 1 |
| Amps | 60 |
| Duty Cycle | 70 % |
| Pump Life | 70,000 |
| Pump Material | Cast iron crankcase and cylinders, aluminum head |
| Noise Level (dB) | 70 |
| Oil Required | Yes, comes with oil in pump but must be checked before operation |
| Low Oil Shutdown | No |
| Lubrication System | Pressure lube |
| Drain Type | Manual |
| Weight (lbs.) | 785 |
| Dimensions L x W x H (in.) | 37 x 24 x 74 |
